SKID STEER LOADER T360
SKID STEER LOADER T360
Product Detail
PRODUCT APPLICATION
Itis mainly used in situations where the working site is small, the ground is uneven, and the work content changes frequently. Itis suitablefor infrastructure construction, industrial applications, dock loading and unloading., urban streets, residential buildings, barns, livestocksheds, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery.
FEATURE
Compact and flexible, convenient for small terrain and narrow space operations.
Simple and convenient operation, convenient transportation.
Use thicker high-quality steel, apply plastic molding process, prevent rust and anti-corrosion.
The 360-degree body rotates freely, and the smart body facilitates outdoor work.
Specifications
Basic performance parameters
Operating weight 880kg
Bucket capacity 0.1m²
Climbing ability 25°
Maximum breakout force 3.5KN
Rated load 200kg
Maximum load 300kg
Travel speed 0-6km/h
Vehicle width 1000mm
Rated pressure 16Mpa
Bucket width 1050mm
Max loading height 1680mm
Max dumping height 1367mm
Max operating height 2400mm
Height to bucket pin 1840mm
Max height bucket dump angle 63°
Min height 1300mm
Departure angle 21°
Ground clearance 130mm
Dumping distance 258mm
Wheelbase 710mm
Dimensions
Overall dimensions 2130*1050*1300mm
Length including bucket 2130mm
Length excluding bucket 1726mm
Tire model 18*8.5-8

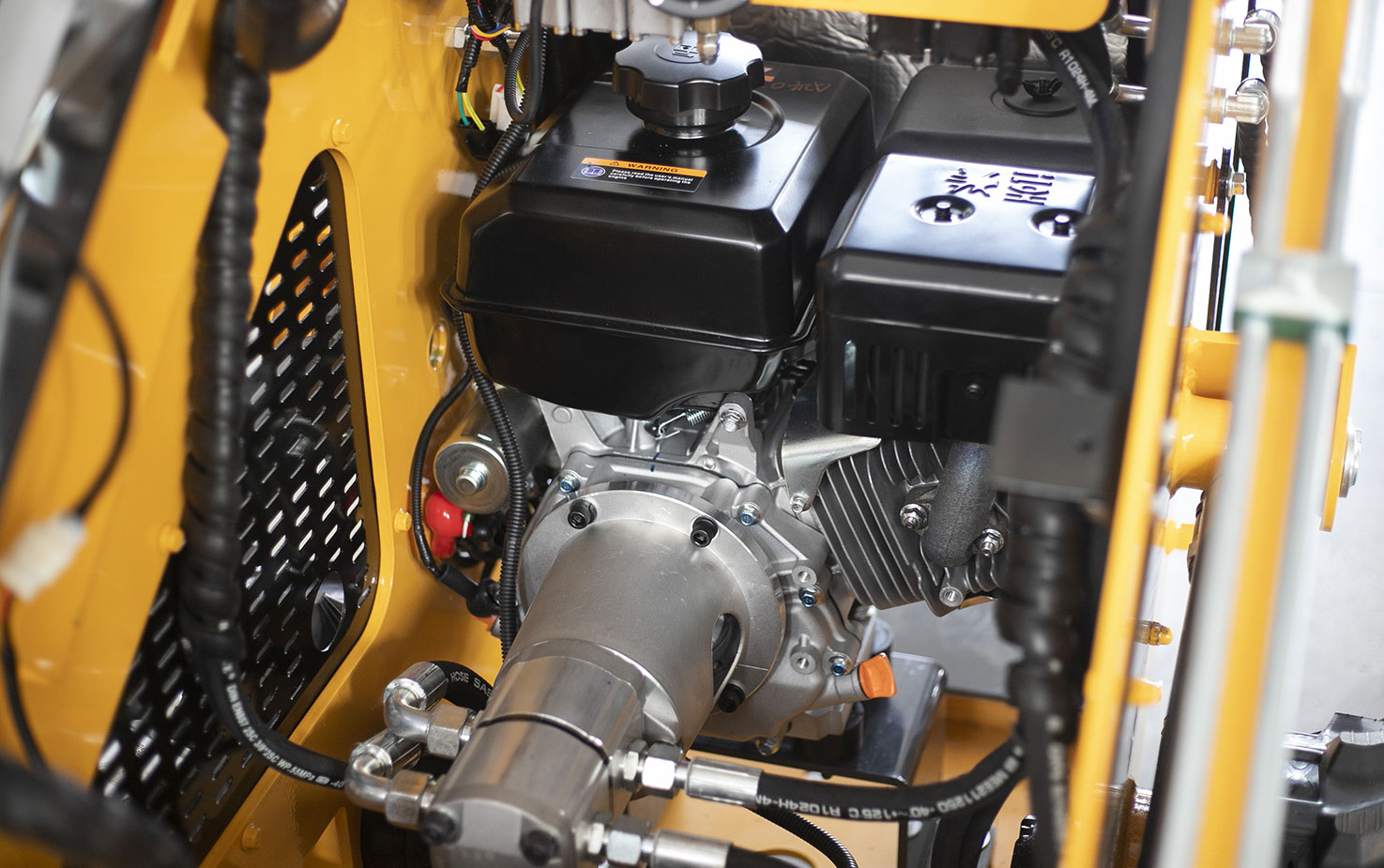

Engine
Brand Lithium electricity/KOOP/Rato/B&S
Model Lead-acid battery/192FH/R420D/XR13.5
Rated power 6kw,72V,125ah/7.6(7)/7.9/9.92kw
Cylinder 1
Intake method Natural inhalation
Emission standard EPA/ERUO5
Fuel tank capacity 5L
