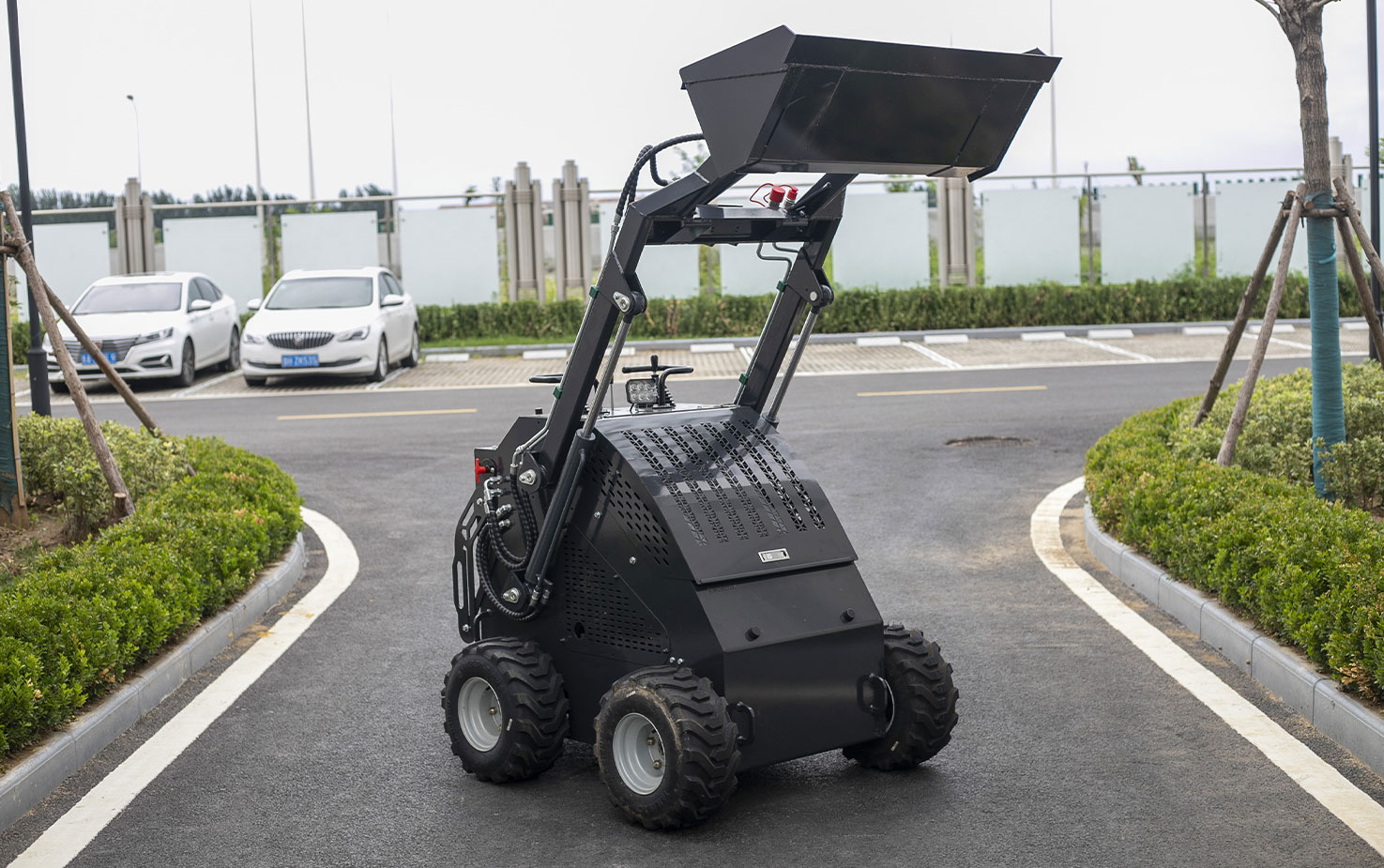

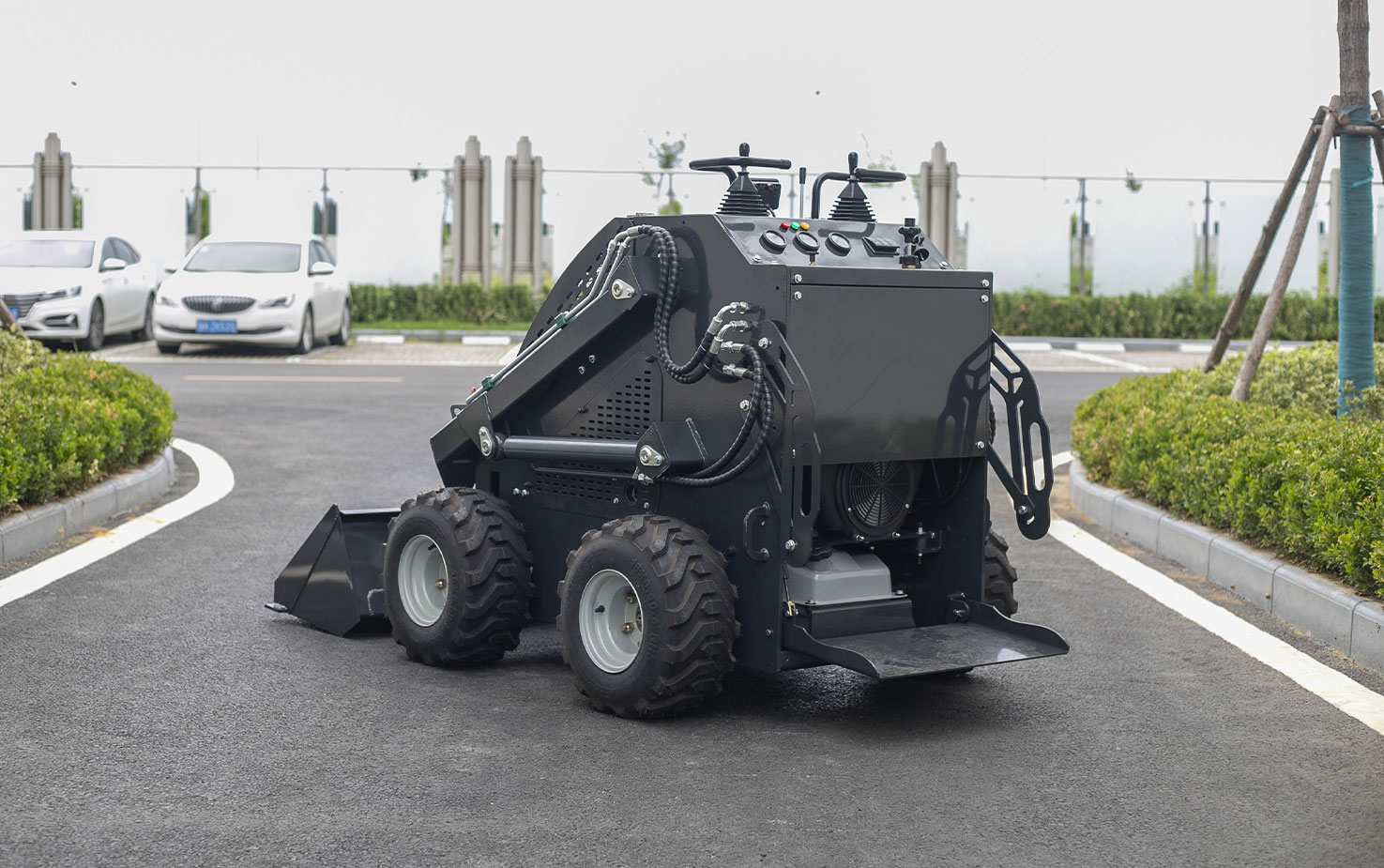

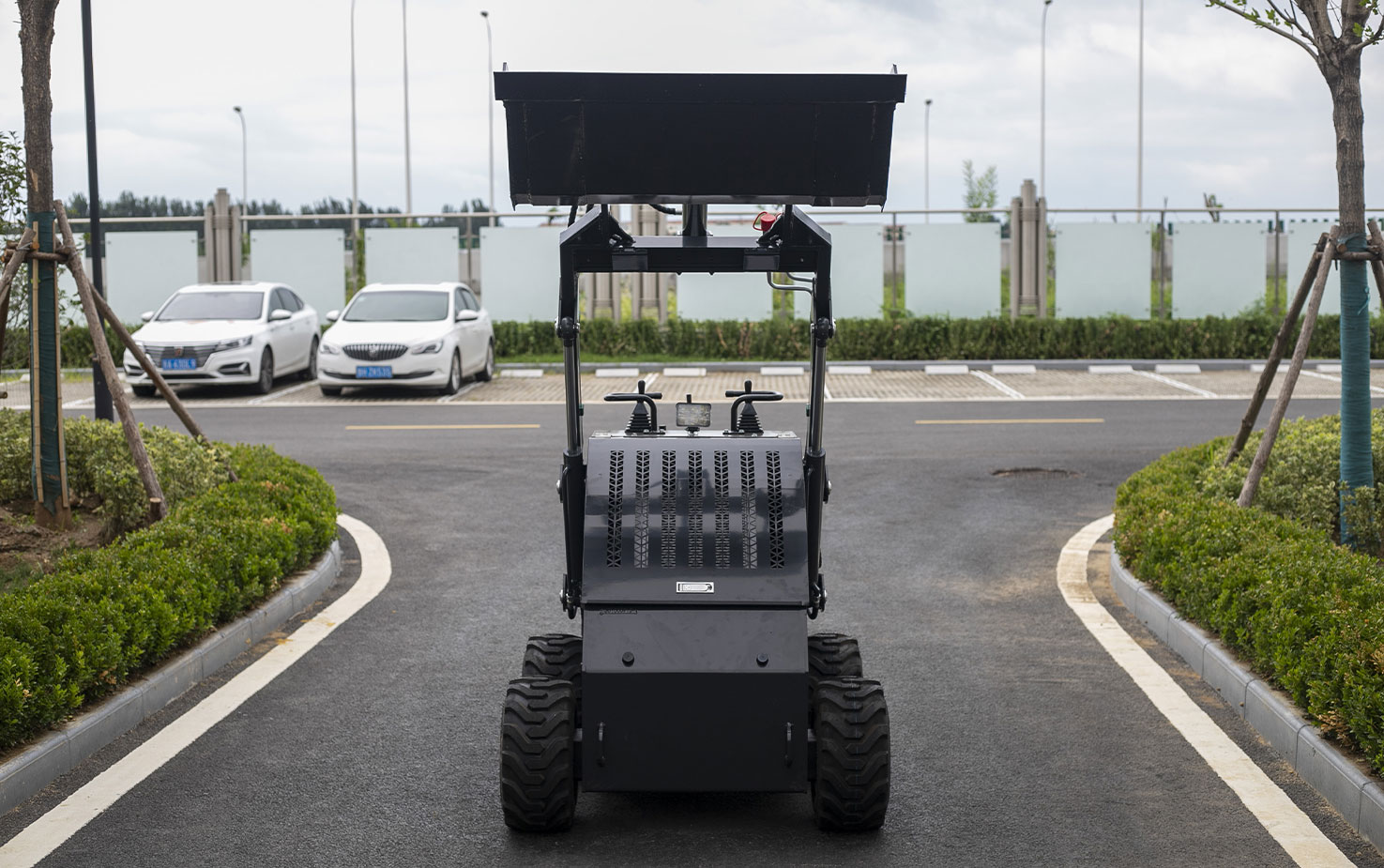

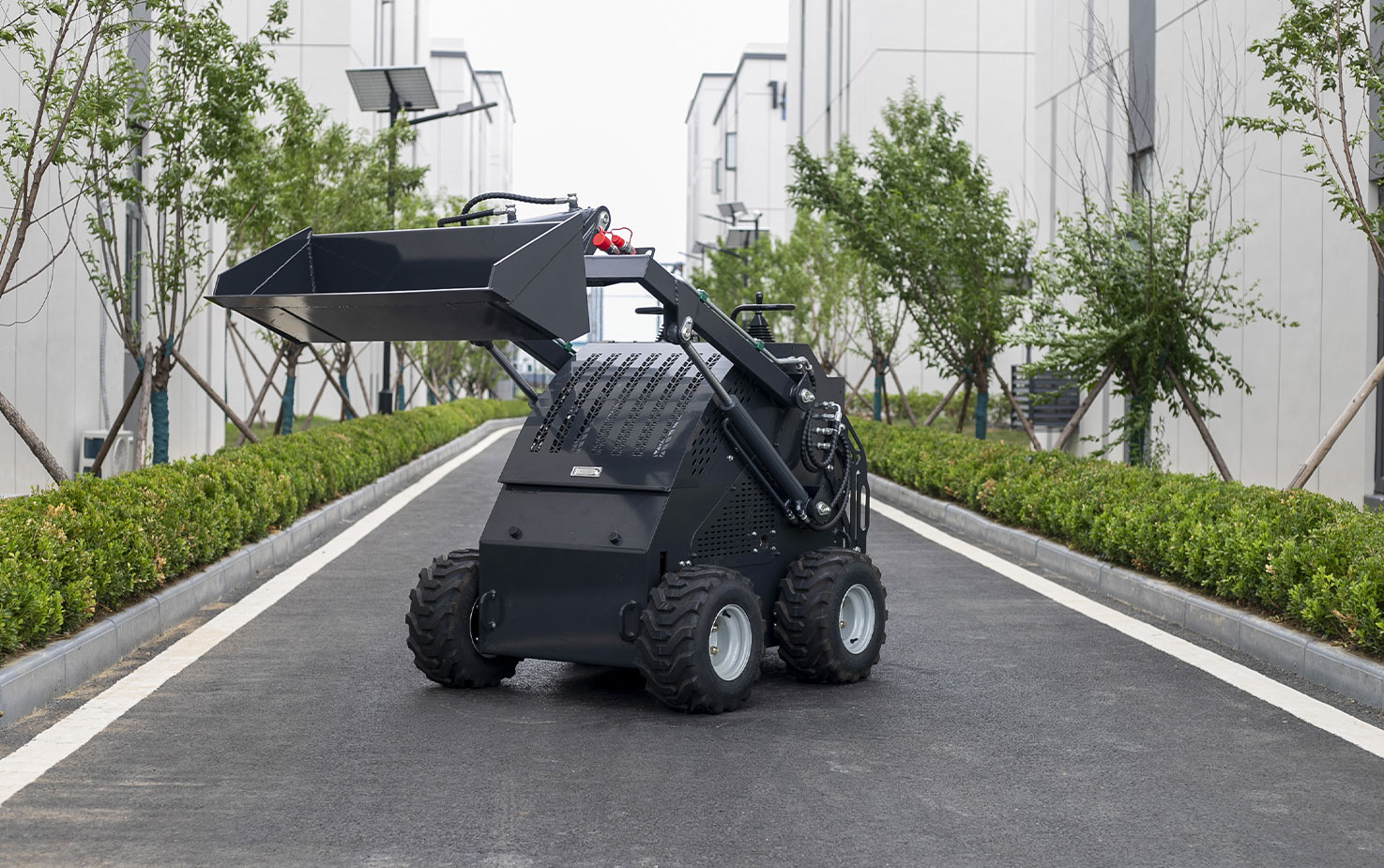

SKID STEER LOADER S460
SKID STEER LOADER S460
Product Detail
PRODUCT APPLICATION
Itis mainly used in situations where the working site is small, the ground is uneven, and the work content changes frequently. Itis suitablefor infrastructure construction, industrial applications, dock loading and unloading., urban streets, residential buildings, barns, livestocksheds, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery.
FEATURE
Compact and flexible, convenient for small terrain and narrow space operations.
Simple and convenient operation, convenient transportation.
Use thicker high-quality steel, apply plastic molding process, prevent rust and anti-corrosion.
The 360-degree body rotates freely, and the smart body facilitates outdoor work.
Specifications
Basic performance parameters
Operating weight 1060kg
Bucket capacity 0.1m²
Climbing ability 25°
Maximum breakout force 4.5KN
Rated load 300kg
Maximum load 400kg
Travelspeed 0-6km/h
Vehicle width 1110mm
Rated pressure 16Mpa
Bucket width 1050mm
Max loading height 1680mm
Max dumping height 1370mm
Max operating height 2290mm
Height to bucket pin 1835mm
Max height bucket dump angl 63°
Min height 1300mm
Departure angle 18°
Ground clearance 125mm
Dumping distance 261mm
Wheelbase 760mm
Dimensions
Overall dimensions 2194*1050*1300mm
Length including bucket 2194mm
Length excluding bucket 1770mm
Tire model 18*8.5-8
Engine
Brand Lithium electricity/KOOP/Rato/B&S
Model Lithium iron phosphate/292f/R740/Vanguard23
Rated power 8kw,72V,200ah/15/16.8/17kw
Cylinder 2
Intake method Natural inhalation
Emission standard EPA/ERUO5
Fuel tank capacity 10L
